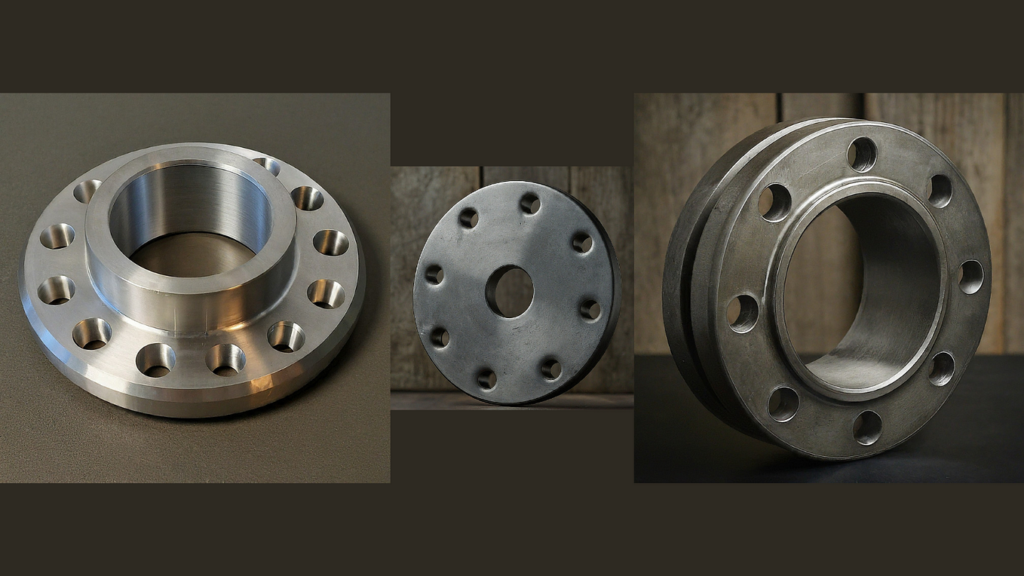

Construction Methodology
Lightweight flanges adhere to AWWA C207 standards, employing reduced cross-sectional dimensions and thinner ring construction designed for municipal water distribution systems. Heavy-duty flanges comply with ASME B16.5 and ASME B16.47 specifications, incorporating thicker material sections, reinforced hubs, and more substantial bolt patterns engineered to withstand high-pressure and cyclic-loading environments. These fundamental design differences fundamentally influence suitability across different industrial sectors.
Pressure Rating Comparison
Lightweight flanges typically operate at 150 PSI Class pressure ratings, making them appropriate for water utility applications and low-pressure steam service. Heavy-duty flanges are available in 150, 300, 400, 600, 900, 1500, and 2500 Class designations, accommodating pressures from 150 PSI up to 2500 PSI depending on the selected class. This pressure classification difference directly reflects the engineering philosophy: lightweight designs optimize cost and weight for stable, low-pressure scenarios, while heavy-duty designs prioritize structural integrity for demanding industrial processes.
Weight and Material Efficiency
For equivalent pipe diameters, lightweight flanges weigh approximately 40-60 percent less than their heavy-duty counterparts. A 6-inch lightweight flange might weigh 15-18 pounds, while a 6-inch heavy-duty 300 Class flange weighs 35-40 pounds. This weight differential becomes economically significant across large-scale infrastructure projects where installation labor, structural support requirements, and transportation costs scale with component mass. The thinner wall sections reduce material consumption while maintaining adequate performance within the design pressure envelope.
Cost Differential
Lightweight flange pricing typically runs 30-50 percent lower than comparable heavy-duty components due to reduced material consumption, simplified machining operations, and standardized AWWA production volumes. Heavy-duty flanges demand premium pricing because of strict ASME certification requirements, enhanced quality assurance testing, material traceability documentation, and limited production runs for high-pressure ratings. Budget-sensitive municipal water projects naturally gravitate toward lightweight specifications, while oil and gas, petrochemical, and power generation applications justify the additional cost of heavy-duty reliability.
Application Suitability
Waterworks systems, municipal pump stations, irrigation networks, and HVAC chilled water loops represent ideal domains for lightweight flanges. These applications operate at consistent, moderate pressures with minimal thermal cycling and no hazardous fluid exposure. Oil and gas production facilities, refinery process systems, high-temperature steam lines, and marine subsea installations demand heavy-duty flanges to manage pressure cycling, temperature extremes, and potential catastrophic failure consequences. The engineering selection process evaluates the complete service envelope before determining which flange class adequately manages the expected operating conditions.
Specification Compatibility
Lightweight flanges utilize Class 125 cast iron bolt patterns and dimensions, providing interchangeability with legacy piping systems. Heavy-duty flanges employ Class 150 and higher pressure-optimized bolt patterns that differ from lightweight specifications. This incompatibility prevents direct substitution in mixed piping networks, requiring careful attention during system modifications or expansions. Installation crews must verify flange specifications before final assembly to avoid mismatched components that could compromise system integrity.
Performance Guarantees
Heavy-duty flange manufacturers provide third-party certification, pressure testing documentation, and full material traceability back to mill origin. Lightweight flanges typically undergo routine hydrostatic testing but may carry simplified documentation packages acceptable for utility service. When environmental or safety-critical applications demand rigorous proof testing and certification, heavy-duty flanges deliver the comprehensive documentation and quality assurance protocols required by regulatory agencies.
